Hot New Products Hydronic Balancing Valve - Static Balancing Valve – Nortech
Hot New Products Hydronic Balancing Valve - Static Balancing Valve – Nortech Detail:
Product Detail:
What is Static Balancing Valve ?
Static Balancing Valve also known as balancing valves, manual balancing valves, digital lock balancing valves, double-position regulating valves, are used to solve the problem of branch pressure differential balance in pipeline design ball. Static Balancing Valve make it possible to introduce appropriate pressure drops so that each branch of the hydraulic circuit has the required design flow rate. They are equipped with suitable pressure ports which, placed of the ends of a calibrated hole.
Static Balancing Valve Technical Specifications
|
1 |
Body |
Ductile iron |
1 |
|
2 |
Cover |
Cast iron |
1 |
|
3 |
Disc |
Cast iron+EPDM |
1 |
|
4 |
Stem |
SS420 |
1 |
|
5 |
Stem nut |
Brass |
1 |
|
6 |
Display module |
Plastomer |
1 |
|
7 |
Handwheel |
Aluminum |
1 |
|
8 |
Test components |
Brass |
2 |
|
9 |
Fixed orifice |
Brass |
1 |
2.Flanged Regualting Valve without orifice
|
1 |
Body |
Ductile iron |
1 |
|
2 |
Cover |
Cast iron |
1 |
|
3 |
Disc |
Cast iron+EPDM |
1 |
|
4 |
Stem |
SS420 |
1 |
|
5 |
Stem nut |
Brass |
1 |
|
6 |
Handwheel |
Aluminum |
1 |
|
7 |
Plug |
Carbon steel |
2 |
Product Show:
What is the Static Balancing Valve used for?
Our Static Balancing Valve can be widely used for
HVAC/ATC
Chemical/Petrochemical
Food and Beverage Industry
Power and Utilities
Pulp and Paper Industry
Industrial environmental protection
Water treatment, high building, water supply and drain tubing line or adjusting medium.

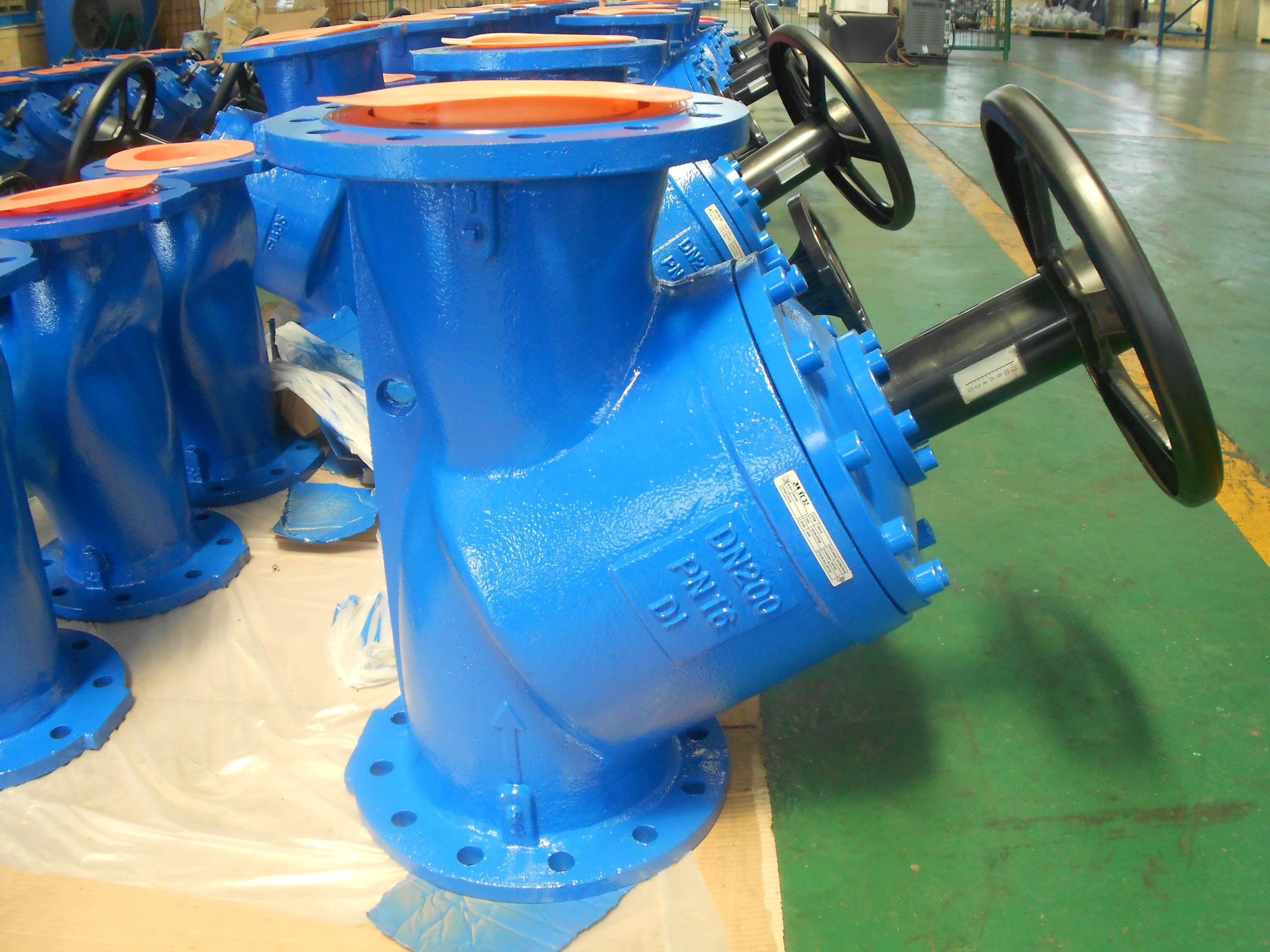

Product detail pictures:
