The characteristics of Forging valves

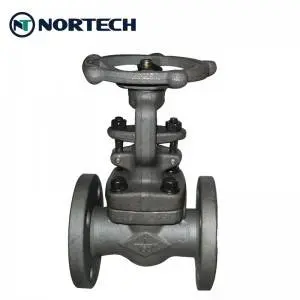

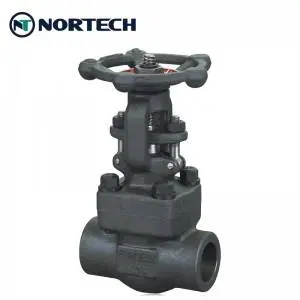

1500lbs gate valve (2)  800lbs gate valve (1)

1. Forging: It is a processing method that uses forging machinery to apply pressure to metal blanks to produce plastic deformation to obtain forgings with certain mechanical properties, certain shapes and sizes.
2. One of the two major components of forging. Through forging, the as-cast looseness of metal and welding holes can be eliminated, and the mechanical properties of forgings are generally better than those of castings of the same material. For the important parts of machinery with high load and severe working conditions, forgings are mostly used except for simpler shapes that can be rolled, profiles or welded parts.
3. According to the forming method, forging can be divided into: ①Open forging (free forging). Use impact or pressure to deform the metal between the upper and lower anvils (anvils) to obtain the required forgings. There are mainly manual forging and mechanical forging. ②Closed mode forging. The metal blank is compressed and deformed in a forging die with a certain shape to obtain forgings, which can be divided into die forging, cold-sensitive, rotary forging, and extrusion. According to the deformation temperature, forging can be divided into hot forging (processing temperature is higher than the recrystallization temperature of the blank metal), warm forging (below the recrystallization temperature) and cold forging (normal temperature).
4. Forging materials are mainly carbon steel and alloy steel with various compositions, followed by aluminum, magnesium, titanium, copper, etc. and their alloys. The original state of the material includes bar stock, cast chain, metal powder and liquid metal. The ratio of the cross-sectional area of ​​the metal before deformation to the die cross-sectional area after deformation is called the forging ratio. The correct selection of forging ratios has a lot to do with improving product quality and reducing costs.

Nortech is one of the leading industrial valve manufacturers in China with quality certification ISO9001.

Major products: Butterfly ValveBall Valve,Gate ValveCheck ValveGlobe Vavlve,Y-StrainersElectric Acurator , Pneumatic Acurators .


Post time: Jul-16-2021
