Triple Offset Butterfly Valve DN150–DN500 Lug PN25/PN40 — CE-PED and ATEX Certified Delivery for European Market

Product Overview

Nortech Engineering Corporation has completed a batch delivery of triple offset butterfly valve units covering sizes DN150, DN250, DN400, and DN500, in pressure classes PN25 and PN40, all in the lug type end connection configuration. The design achieves 100% bi-directional tightness with zero leakage under both normal seated and pressure-relief conditions — a performance standard demanded by European process plant specifications. The lug body profile allows dead-end service installation without a downstream flange, offering flexible piping configuration for plant engineers.

This shipment was purpose-built for the European market and complies fully with CE-PED (Pressure Equipment Directive) and ATEX classification requirements for use in potentially explosive atmospheres.

Technical Specifications

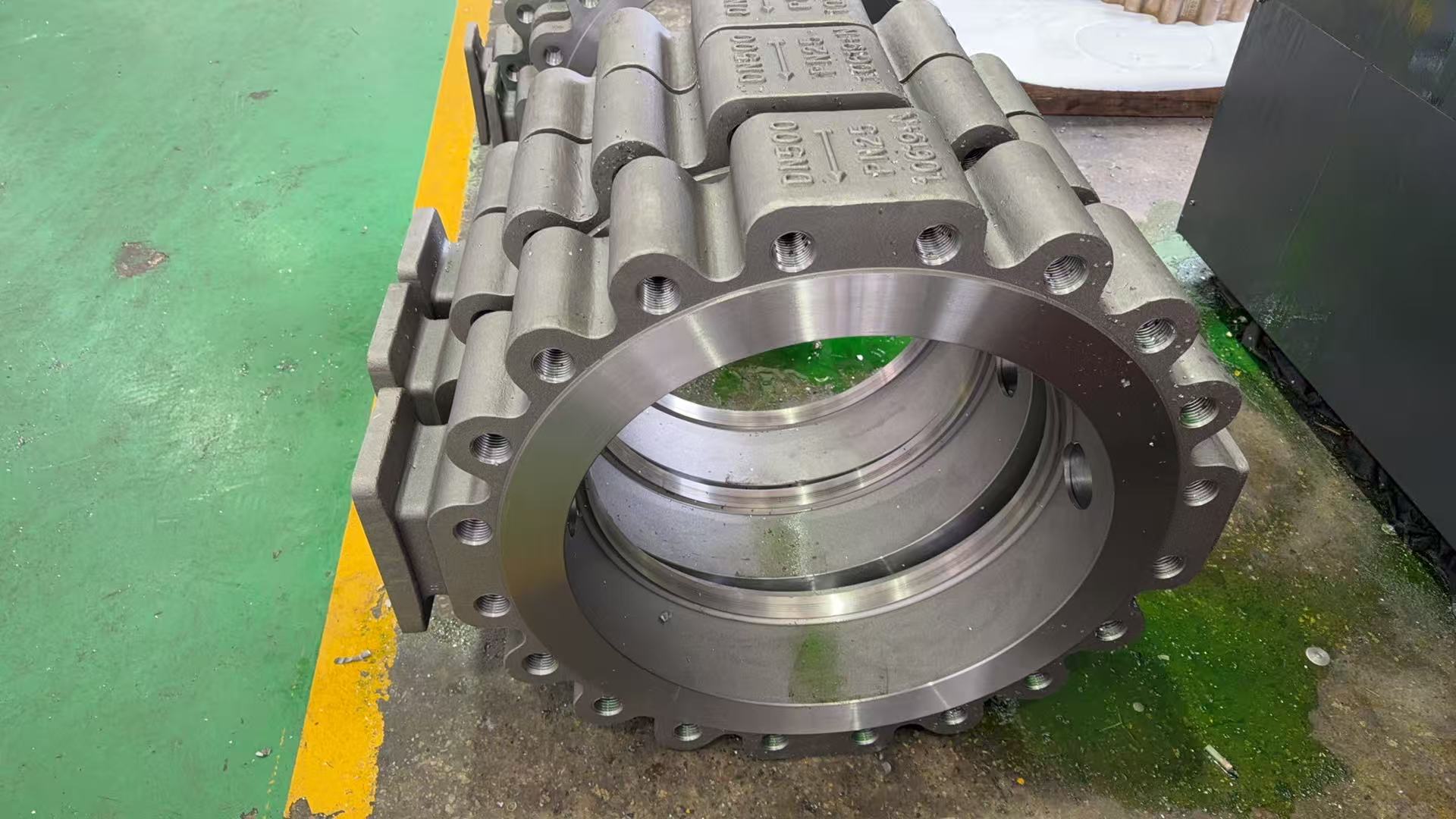

The body and bonnet are produced in 1.0619+N carbon steel, machined to tight dimensional tolerances to ensure accurate triple-offset geometry and consistent seat contact. The disc is cast in 1.4408 austenitic stainless steel (CF8M equivalent), providing corrosion resistance across a wide range of process media. The stem is manufactured from 17-4PH precipitation-hardening stainless steel, selected for its high yield strength and fatigue resistance under cyclic torque loads.

The metal seat system is Stellite hardfaced on the seating surface to resist abrasion, galling, and thermal cycling damage at elevated temperatures. The seal ring combines S32750 super duplex stainless steel with a graphite laminate layer, delivering fire-safe sealing performance and sustained integrity across high-cycle operation. End connection is lug type to EN 1092-1 flanging dimensions; design standard EN 593.

Application & Delivery

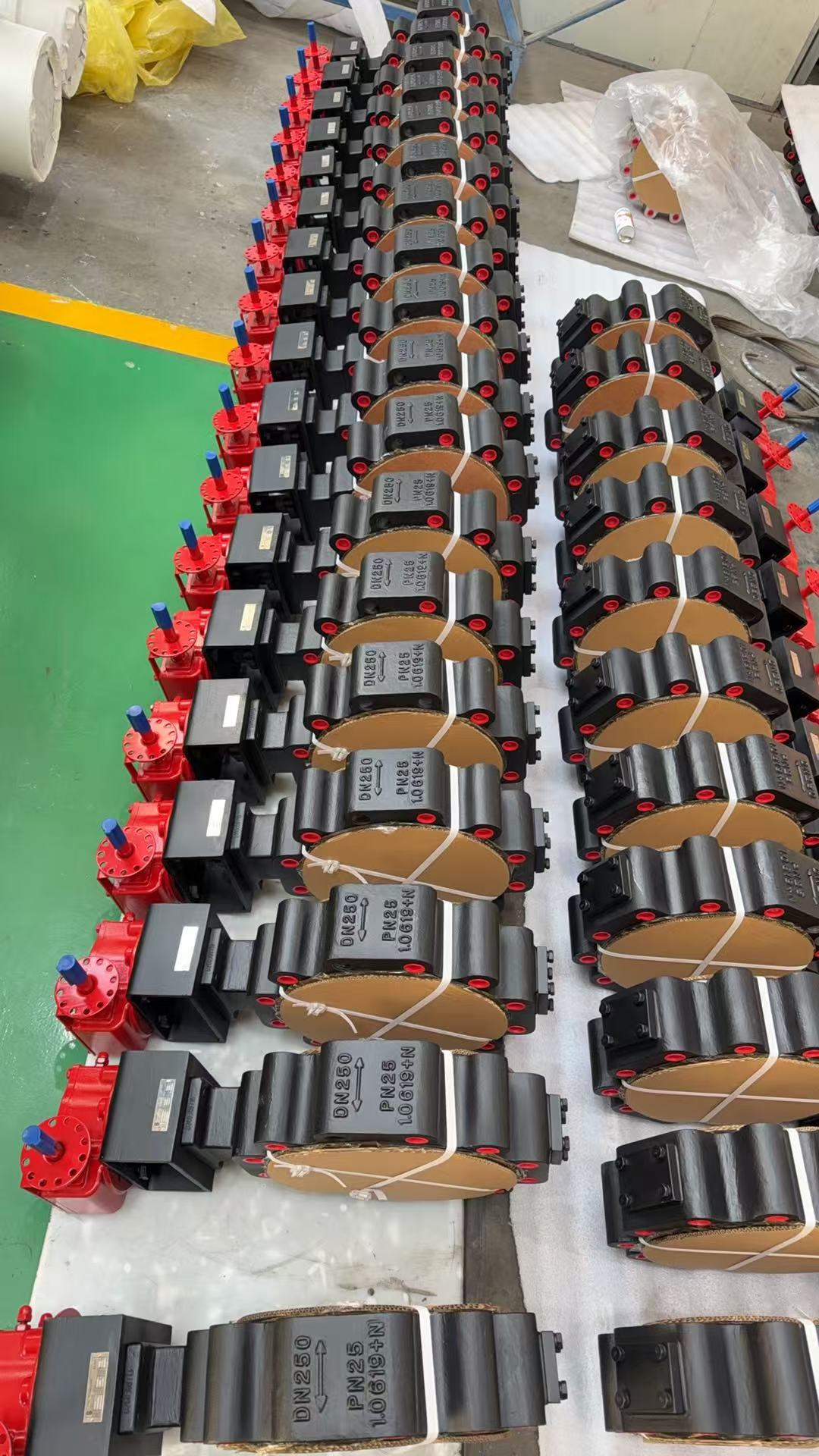

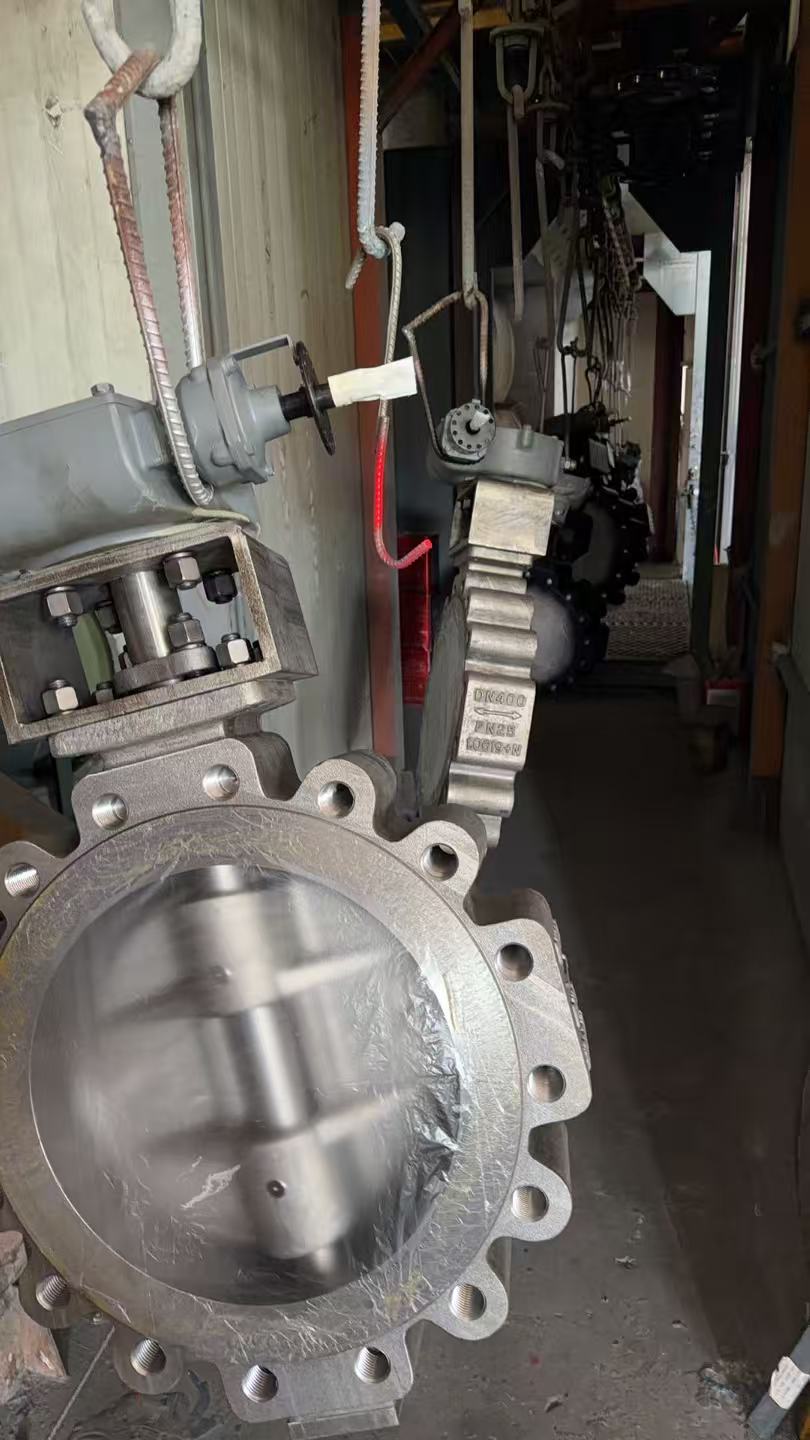

This batch was supplied to a European distributor serving the refining, petrochemical, and energy generation sectors. The ATEX butterfly valve certification qualifies these units for Zone 1 and Zone 2 hazardous area installations where ignition risk control is mandatory. Multiple operator configurations were included in the delivery — manual gearbox assemblies for the larger DN400 and DN500 sizes, and pneumatic actuator packages for the DN150 and DN250 units — covering the full range of site automation requirements.

As a specialist triple offset butterfly valve supplier, Nortech provides CE-PED-compliant valve packages for European stock and project orders, with full material traceability and third-party inspection available on request.
