Metal Seated Ball Valve

Short Description:

Metal Seated Ball Valves,floating ball and trunnion ball

suitable for severe working conditions,high temperature,wear resistance

could be Uni-directional sealing and bi-directional sealing

DBB available for Trunnion metal seated ball valve


Pressure rating:Class150-900lbs


NORTECH is one of the leading China Metal Seated Ball Valve Manufacturer & Supplier.

Product Detail

Product Tags

What's the metal seated ball valve?

Ball valve is one of the most popular valves for various industries.With such features as small fluid resistance,smooth flow channel,rapid opening and closing,and easy automatic control,the ball valve has been widely used.But the seat or regular ball valves is generally made of PTFE and other non-metal materials.Limited by seat seal materials,the regular valves can not be used under the service condition of high temperature or wear resistance.

Therefore,the series of new style practical metal seated ball valves were developed,and have been widely applied in petroleum,chemical industry,electric power,metallurgy,light industry etc

Metal to metal seat ball valve owns not only various advantages of common industrial ball valves,but also particular and outstanding characteristics in heat-durability,especially when soft seal could not be used,such as in pipeline delivery of medium with high friction dust,slurry,and solid foreign matters mixture.

Main features of the metal seated ball valve?

1.Advanced Ball and Seat Hardening Technology

The sealing is effected metal to meal between the ball and metal seat of the ball valves.According to different service conditions and requirements of users,various advanced ball and seat hardening technologies can be adopted,including HVOF coating,nickel-base alloy spray welding,high nickel alloy spray welding, cobalt case hard alloy spray welding,etc.Generally the ball and seat surface hardness can reach HRC55-60 with the maximum value of HRC70.and normally,the heat resistance of the sealing face material can be 540°C,with the maximum value of 980°C. The sealing face material has also good wear resistant and impact resistant performances.

metal seated ball valve ball coating

2.Flexible Valve Opening and Closing

Under the service condition of high temperature,the ball and seat will expand too much because of thermal expansion,and torque will increase and the valve cannot be opened,The ball valve adopts the disc spring or spring loaded sealing structure so that thermal expansion of parts under high temperature can be absorbed by the disc spring or spring. And it is ensured that the valve will be flexibly opened and closed under high temperature without expanding too much.

3. Fireproof Structure Design

In the metal to metal structure  for the valve,the gasket is the stainless steel+flexible graphite and the packing is the flexible graphite.Therefore,reliable sealing of the valve can be ensured even in case of fire.

4. Double Block and Bleed(Metal Seated Trunnion Ball Valve)

The metal seated trunnion ball valve usually adopts the sealing structure before the ball. When the valve is closed and the middle cavity is emptied the discharge valve,the upstream and downstream seats will independently block the fluid at the inlet and outlet to realize double block function.

The metal seated floating ball valve usually adopts the sealing structure after the ball.The flow direction will be marked on the body for the ball valve unidirectional sealing.If specified by the end users,bidirectional sealing can be effected.

5. Reliable Sealing Performance

The unique ball grinding technology is adopted,through rotation of the ball and the grind er at different positions.the ball surface will achieve high roundness and fineness.The low pressure sealing of valve seat is realized by spring pre-tightened.In addition,the piston effect of valve seat is designed reasonably,which realizes high pressure sealing by the fluids itself,The tightness of metal seated ball valves meets the requirements of level IV of ANSI B16.104.

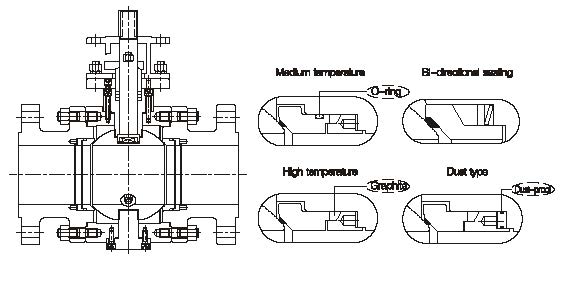

Metal Seated trunnion Ball Valve seat

Metal seated trunnion ball valve

metal seated floating ball valve

Metal seated floating ball valve

Technical specifications of the metal seated ball valve?

Metal seated ball valves,different design for floating ball and trunnion ball.

Metal seated floating ball valves

Metal Seated floating Ball Valve- structure
Metal Seated floating Ball Valve- specification

Metal seated trunnion ball valve

Metal Seated trunnion Ball Valve structure
Metal Seated trunnion Ball Valve specification

Product Show:


Application of metal seated ball valves

What is the Metal Seated Ball Valve used for?

The metal seated ball valve is widely used to cut off or connect the media in various pipelines, petroleum, chemical industry, electric power, metallurgy, light industry. It is suitable for severe service conditions containing solid granules,slurry,coal powder,cinder etc.
